Description:
I would like to define identification mode schedule. Is it possible and how to do it?
Solution:
Identification Mode Schedules are available on advanced PRxx2 series, controllers.
In order to define and program Identification Mode Schedule please follow steps below:

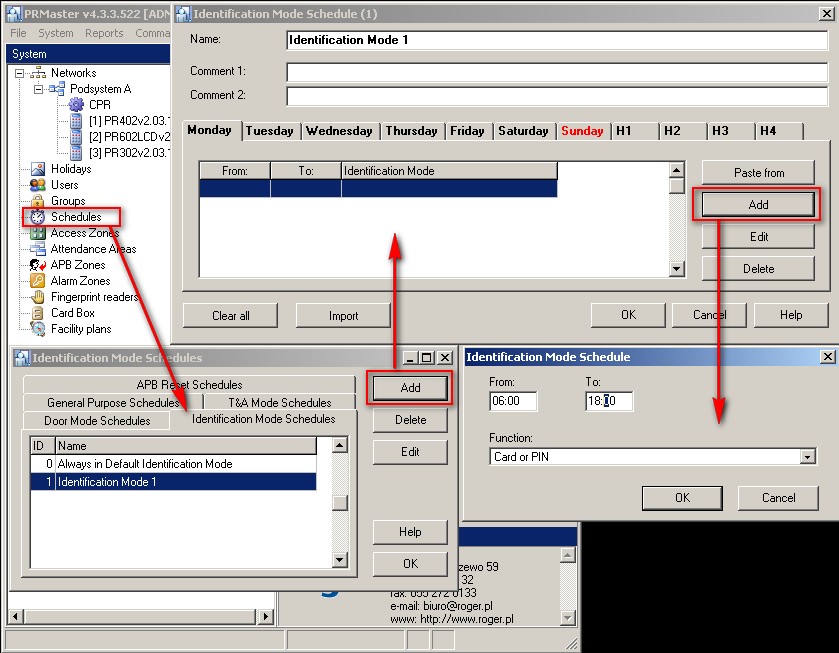

1. Click System -> Schedules from the main menu or choose Schedules from the main window "tree",
2. Click Identification Mode Schedules tab,
3.Click Add to define new schedule,
4. Type name and click Add,
5. Enter From/To time period(s) for each day (e.g. from 6:00 to 18:00 on Monday) and choose identification mode for the defined schedule (e.g. Card or PIN),
6. Close Schedules window,

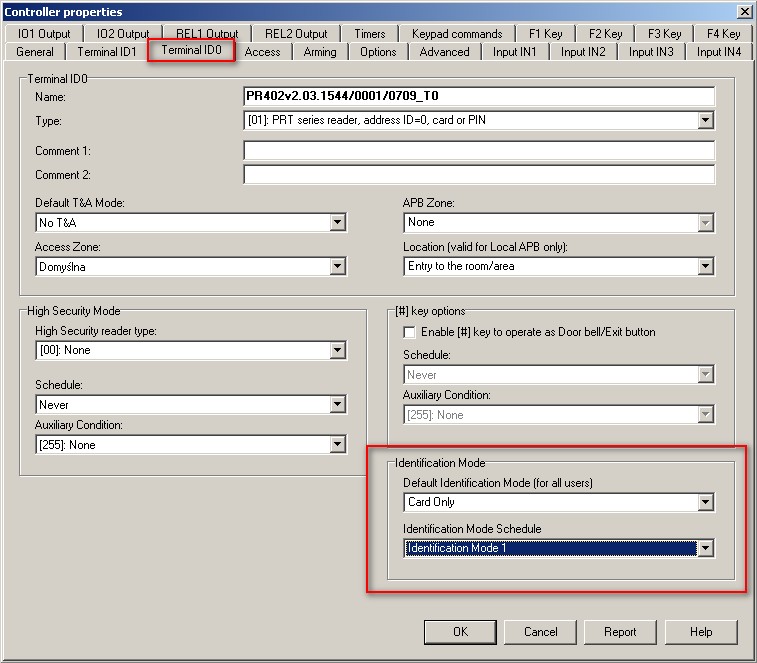

7. Click System -> Networks -> Controllers -> Properties,
8. Click Terminal ID1 / ID0 tab,
9. Select Default Identification mode: Only Card,
10. Send Configuration to controller.
7. Click System -> Networks -> Controllers -> Properties,
8. Click Terminal ID1 / ID0 tab,
9. Select Default Identification mode: Only Card,
10. Send Configuration to controller.
After the settings are send to controllers the identification will be scheduled as follows:
- on Mondays between 6:00 and 18:00 identification Card or PIN,
- in the rest of time of a week the controller will stay in default identification mode Only card.
