Description:
Is there possibility to connect PRT readers to CPR32SE network controller? What is the functionality of CLK and DTA lines in CPR32SE network controller?
Solution:

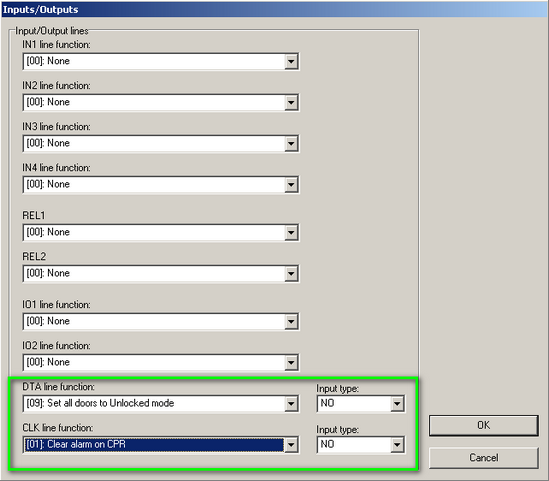

CLK and DTA lines are not used for communication with PRT readers. They can be programmed as input and/or output lines. Using the line one can - for example - open all doors in subsystem or delete all alarms. In order to assign particular function to CLK and DTA line (in PR Master main window) click System > Networks , and then CPR > Settings > Inputs/ Outputs.
