Typical PRTxxEM reader installation in standalone mode

Description:
I would like to use PRT12EM reader to control electromagnetic lock. I also would like to connect door contact and Exit button on the other side of the door. How to make the cable connections?

Solution:

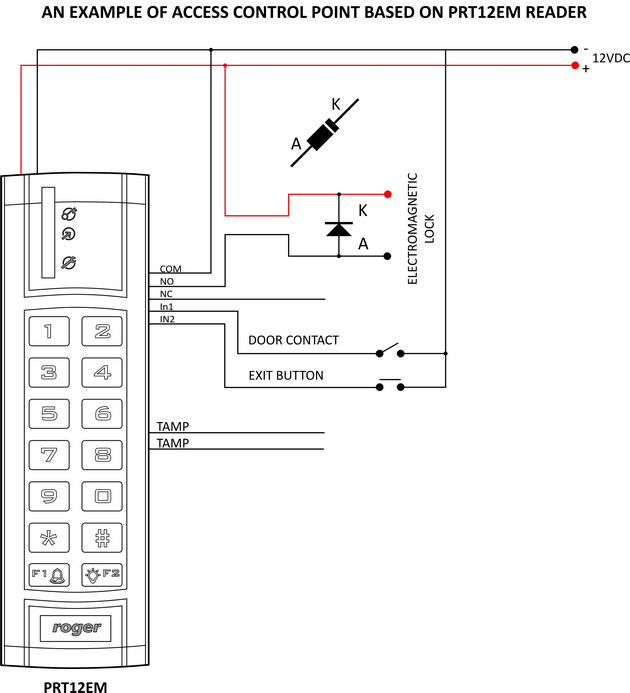

An example of typical installation of PRTxxEM series reader in standalone mode is shown below.

Typical PRTxxEM Reader Installation in Standalone Mode
