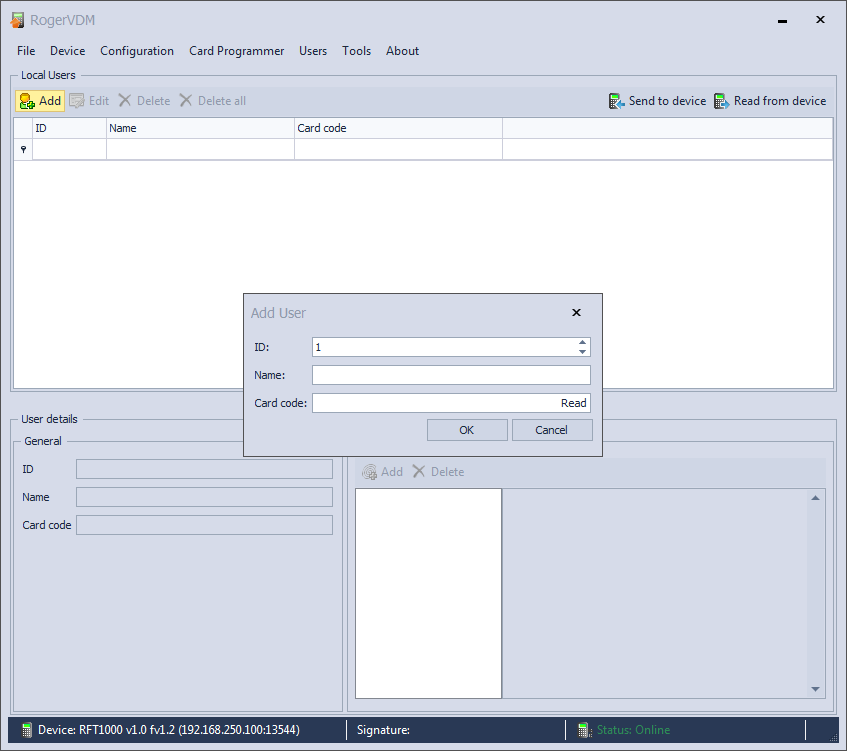

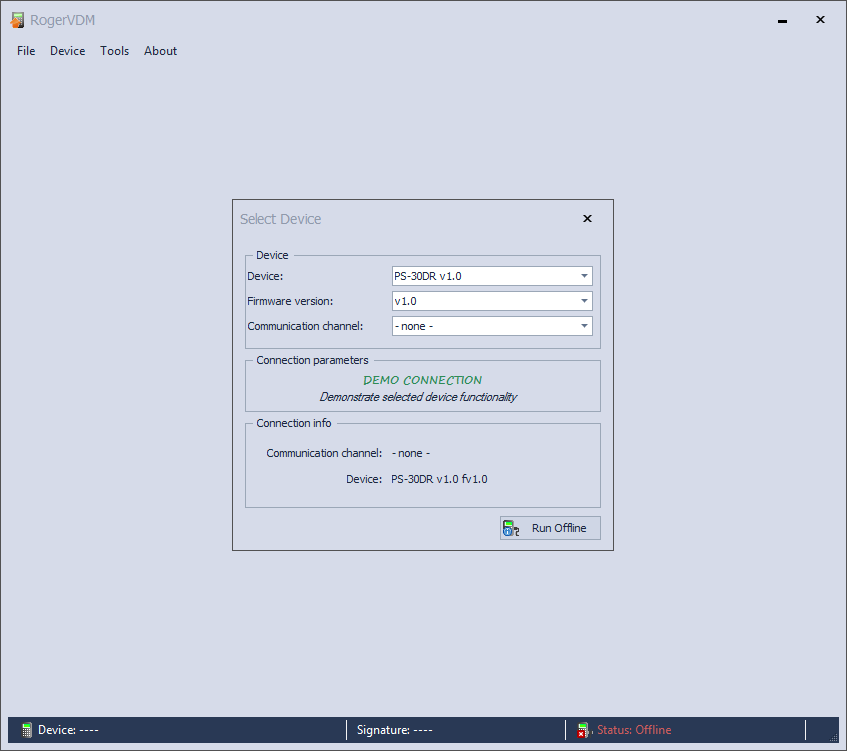

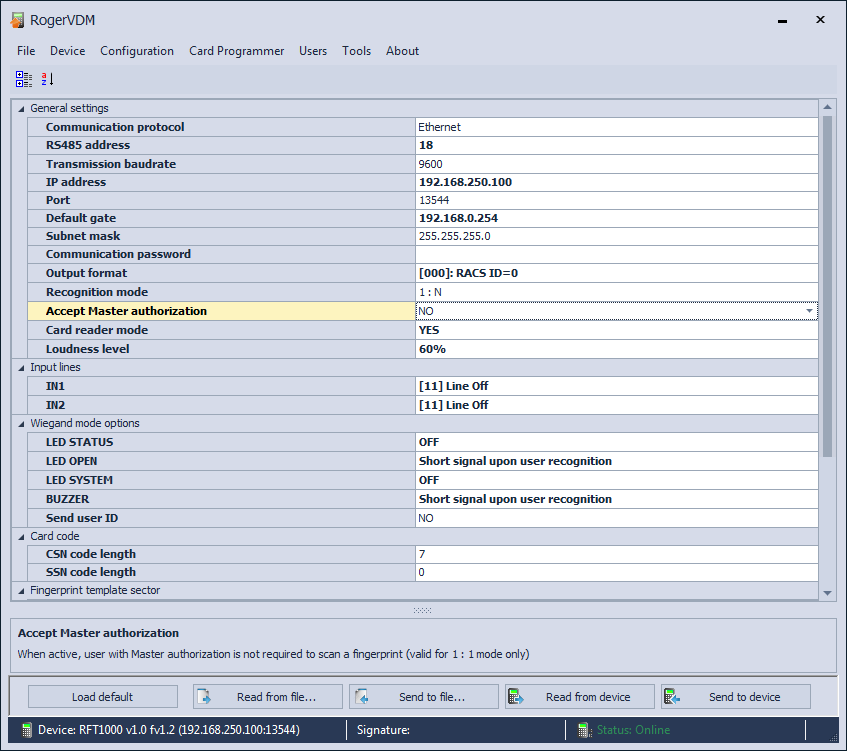

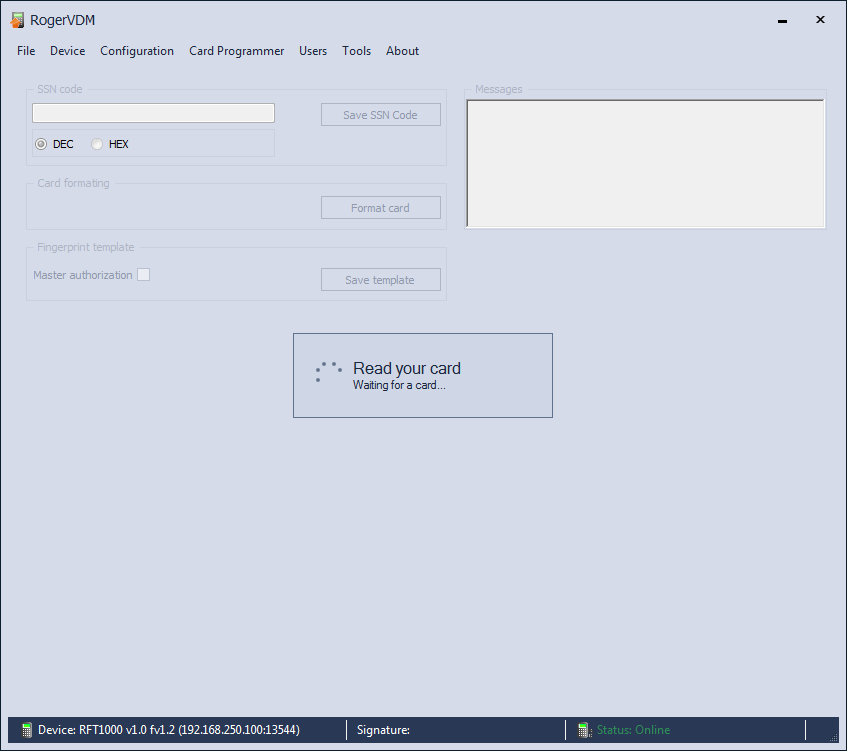

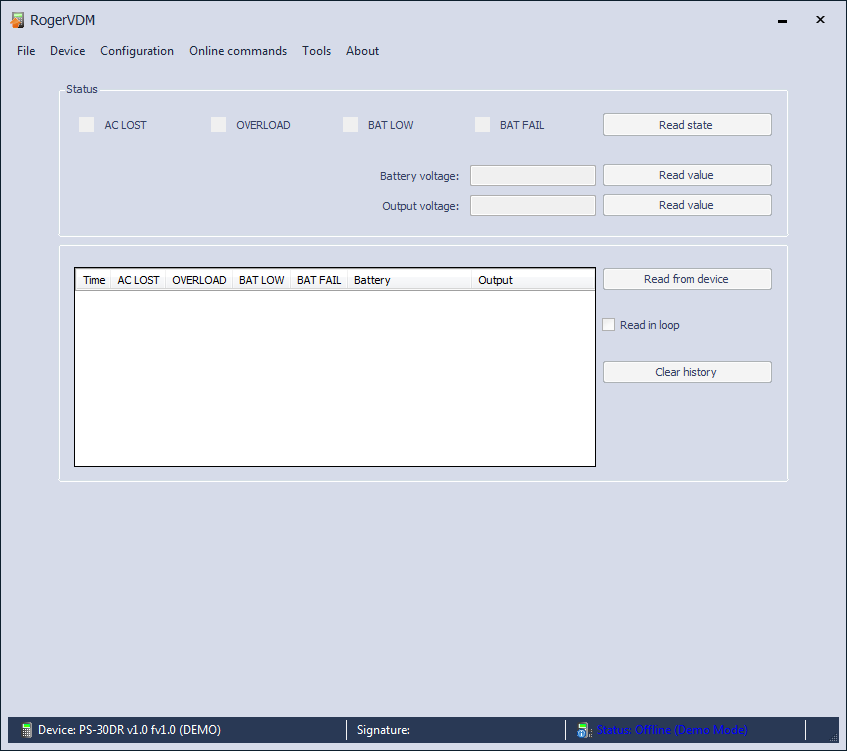

RogerVDM Equipment Low-Level Configuration RACS 4 System

RogerVDM software is used in low level configuration of Roger devices.

Basically, the software is intended to be used in preliminary phase of configuration, when some low level parameters have to be configured and device has to be adapted to conditions in particular installation. In order to configure particular device, it is necessary to select it from the list and the software shall adapt to it and make particular functions and options available.

RogerVDM is offered free of charge. The application can be used in following operating systems: Windows XP (SP3), Windows Vista (SP2) or Windows 7 (x32 or x64) and it requires installation of NET Framework 4.0 Extended and MS Visual C++ 2010 Redistributable.

Minimal hardware requirements: 1GHz CPU, 512 MB RAM.

List of currently operated devices:

• MC16 Access Controller
• MCT Proximity Readers
• MCX Expanders
• RFT1000 Fingerprint Reader
• PRT82MF and PRT84MF Proximity Readers
• Hotel Automation Devices: HRT82MF, HRT82MF-CH, HRT82FK, HRT82AC
• Administrator Readers
