XM-6DR Relay Outputs Expander

Expander with six relays, each with NO/10 A/230 VAC/ 30 VDC contact, RACS CLK&DTA communication interface, DIN rail plastic enclosure.

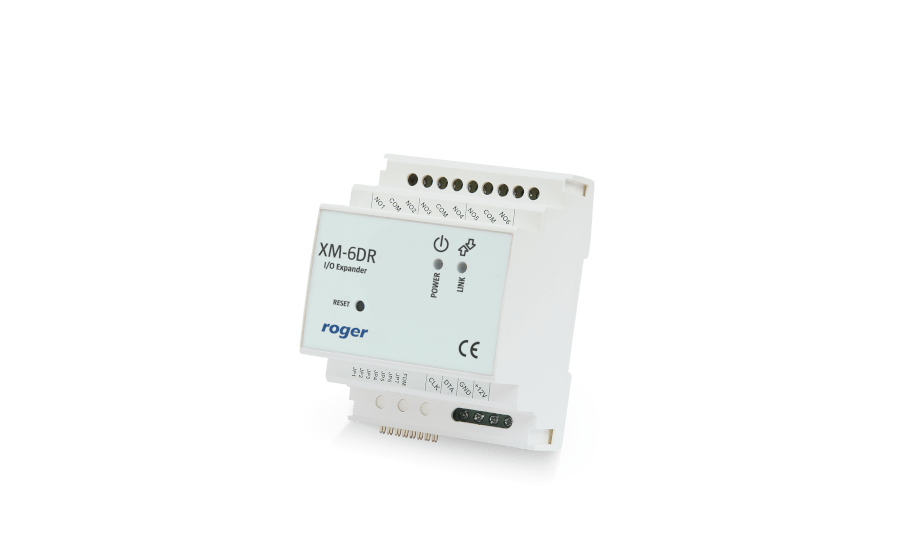

  • XM-6DR
    XM-6DR

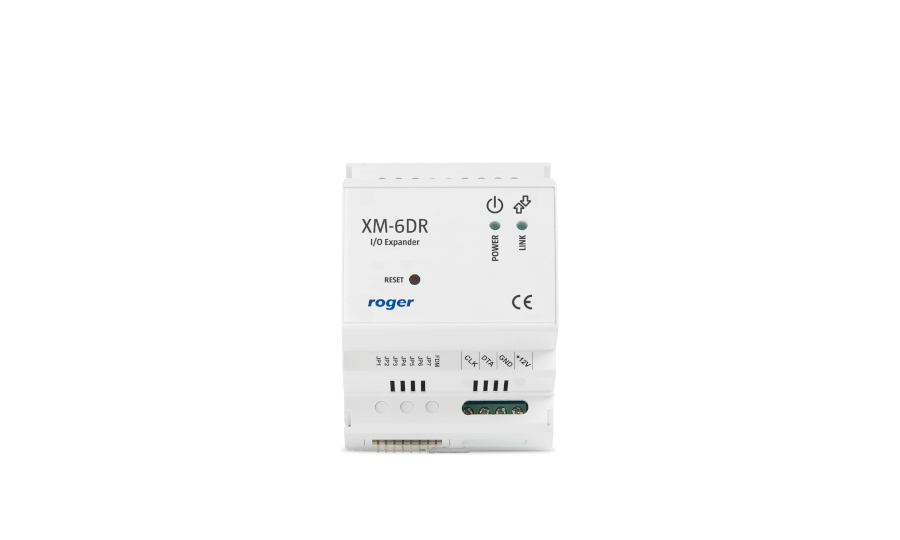

  • XM-6DR
    XM-6DR
  • XM-6DR DIMENSIONS
    XM-6DR DIMENSIONS

About

Expander with six relays, each with NO/10 A/230 VAC/ 30 VDC contact, RACS CLK&DTA communication interface, DIN rail plastic enclosure.

Features

  • power supply 12 VDC
  • average current consumption 20 mA (plus 40 mA per each activated relay)
  • six relay outputs with single NO/10 A/230 VAC/30 VDC max load
  • RACS CLK/DTA communication protocol
  • DIN rail plastic enclosure
  • 6900 VA maximum switching power (AC1 category)
  • distance between controller and XM-6DR module up to 150 m
  • dimensions: 85.0 x 62.0 x 73.0 mm (height x width x depth)
  • weight: ≈125.0 g
  • CE mark
  • environmental conditions of operation:
    • temperature from -25°C to +60°C
    • humidity from 10% to 95%

Versions

XM-6DR Relay Outputs Expander

XM-6DR
Expander with six relays; each with NO/10 A/230 VAC/30 VDC contact
